2 IBC Spill Pallet SPL221350 – 2200×1300×500mm HDPE Twin IBC Bunded Pallet 1100L Sump

Product Spec

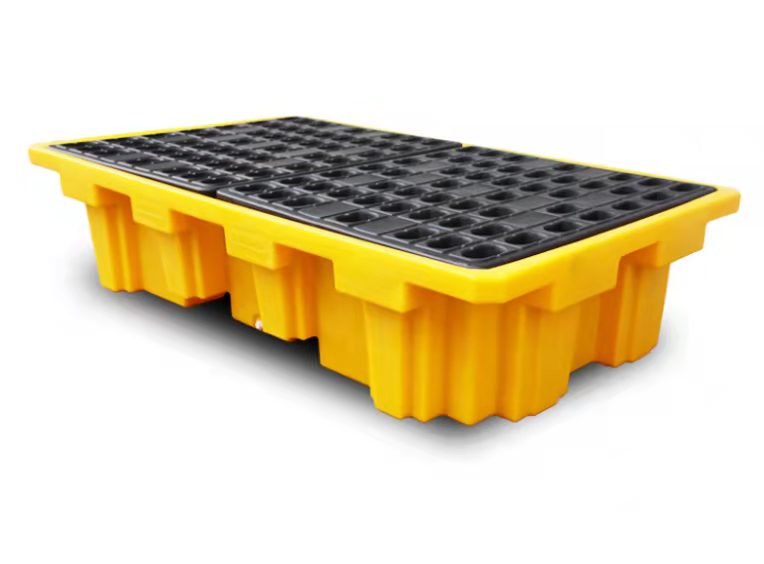

The SPL221350 Double IBC Spill Containment Pallet is a heavy-duty secondary containment base built for facilities running two standard 1000 L / 275-gallon Intermediate Bulk Containers in a shared footprint. Molded from virgin UV-stabilized LLDPE, it carries a 1100 L integral sump—110% of a single IBC’s volume—so a full valve, seam or bottle failure is captured without reaching the floor, drain or soil. This satisfies the EPA 40 CFR 264.175 and SPCC 40 CFR 112.7 secondary-containment benchmarks and the 110% rule used across US, EU and GCC sites. Two removable black anti-slip grates elevate the IBCs, let leak fluid drain to the sump and lift out for fast decontamination; a bottom drain plug enables pumped or gravity recovery of collected liquid. Four-way fork-pocket units accept forklift or hand-pallet input (empty-unit handling only), while the 2200×1300×500 mm profile packs two IBCs into roughly the space of one-plus, reducing floor area versus two singles. Rated 6000 kg static / 1500–3000 kg dynamic depending on grate config, the SPL221350 replaces rust-prone steel bunds with a corrosion-free poly base for acids, solvents, lubricants and agro-liquids—indoor bulk room, outdoor compound or dispatch ba

Key Features

• 1100 L Sump = 110% Rule Pass​ – Legally contains a catastrophic single-IBC rupture; no fines, no drain contamination, no manual bucketing.
• Two IBCs, One Footprint​ – 2200 mm length instead of two 1380 mm singles saves ~36% floor space and one set of handling moves.
• Virgin HDPE, Zero Rust​ – Outperforms steel bunds in acid/solvent/marine yards; UV-stabilized for covered-outdoor duty.
• Grate + Drain Combo​ – Lift-out grates for washdown, bottom plug for pumped recovery—no tipping a 1000 L bund.
• 4-Way Forkable (Empty)​ – Relocate the whole twin-IBC station during layout changes without breaking containment.
